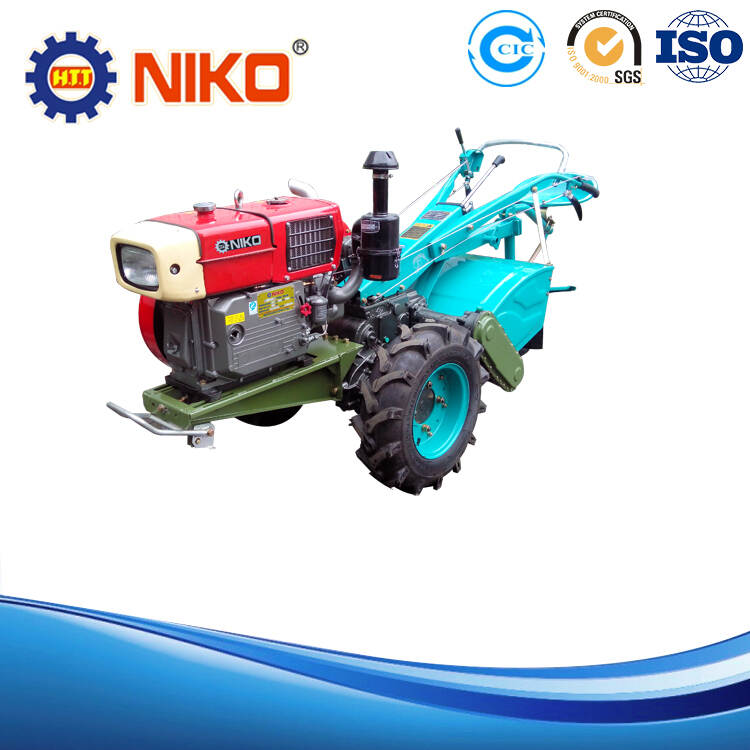

Power Tiller GN/DF Type Walking Tractor for Farm Usage
- Rated Power (HP)20HP
- TypeWalking Tractor
- UsageFarm Tractor
- By wheel2WD
- Tire6.00-12
- ImplementsPlough Harrow Cultivator
- ClutchSingle
Product Description
| Walking Tractor | |||||||
| Model | Unit | WTR121 | WTR121E | WTR151 | WTR151E | ||
| Type | Single axle,dual-purpose for both traction & drive | ||||||
| Overall Dimension | MM | 2680×960×1250 | |||||
| Structural Weight Without Rotavator | Kg | 350 | |||||
| Working Weight With Rotavator | Kg | 485 | |||||
| Theoretical Speed Engine Rotation Speed 2000rpm |
Forward | I | Km/h | 1.4 | 1.4 | 1.4 | 1.4 |
| II | Km/h | 2.5 | 2.5 | 2.5 | 2.5 | ||
| III | Km/h | 4.1 | 4.1 | 4.1 | 4.1 | ||
| IV | Km/h | 5.3 | 5.3 | 5.3 | 5.3 | ||
| V | Km/h | 9.4 | 9.4 | 9.4 | 9.4 | ||
| VI | Km/h | 15.3 | 15.3 | 15.3 | 15.3 | ||
| Reverse | I | Km/h | 1.1 | 1.1 | 1.1 | 1.1 | |
| II | Km/h | 3.8 | 3.8 | 3.8 | 3.8 | ||
| Turning Speed of Rototilling Shaft | Single Speed(188/256); Double Speed(188/256/276/375) | ||||||
| Rototilling Width | Blades No. 18/20 | MM | 600 | ||||
| Blades No. 24/26 | MM | 900 | |||||
| Tyre | 6.00-12 | ||||||
| Air Pressure | Mpa | 0.2 | |||||
| Wheel Tread | MM | 570~800 | |||||
| Ground Clearance | MM | ≥180 | ≥182 | ≥182 | |||
| Min. Turning Radius | MM | ≤900 | |||||
| Type of Clutch | Double Friction Flat of Constant Combination | ||||||
| Type of Steering Gear | Meshing Sleeve | ||||||
| Type of Brake | Cricoid, Inside Expansion | ||||||
| Triangle Belt | B1880 3pcs or 4pcs | ||||||
| Capacity of Lubrication Oil | L | ≥6 | |||||
| Engine Model | CF195N | CF195NM | CF1100N-2 | CF1100NM-2 | |||
Packaging & Shipping
Payment term:
1.T/T.
2.L/C at sight
Trade term:
1.FOB
2.CIF
3.EXW
Packing details:
1.Wooden case or as requirement.
Delivery time
1.20 days after receiving deposit.
2.Negotiable
Min.order
1.one mixed 20’container.
2.Favorable price based on big quantity.
Company Information
Hebei Taihong Agriculture Machinery Manufacture Co., Ltd establish in 1994. We are a professional factory integrates the reaching, development, production and sale of diesel engine spare parts. In 2004, we established our international trade company specially exporting diesel engine & engine parts. After years' development, we have expanded our business range to Gasoline Engine and other agricultural machine, such as tiller, disk mill, meat mincer, oil expeller, rice mill and spare parts ball bearing, v belt etc.
Our company located in the biggest diesel engine parts basic. On the basis of superior geographical position and extensive experience, we soon become the leading manufacturer and trader in the small agricultural machines area.
Our brand NIKO and TAIHONG are highly recommended by many loyal customers for premium quality and thoughtful design, as a result of that , products are extremely welcome in Africa , South and West Asia ,South America etc .More and more buyers have began to cooperate with us.
Moreover we promised: excellent quality, outstanding service, hand by hand to get mutual benefit with you. Along with the world situation of quality control, we follow the policy immediately. Now we supply CIQ, SONCAP, PVOC, and other request inspection certificate for supporting clients to handle the clearing of his goods easily in destination
